This Aeroflow Performance universal breather tank is an essential step in removing PCV oil before it enters the combustion chamber. This is used on the fresh air side of an engine breather system and is open to the atmosphere or plumbed back into the system after the MAF sensor on EFI equipped engines.

Constructed from billet 6061-T6 aluminium and finished in either polished or black anodized finishes.

This breather tank comes with a stainless-steel filter (AF77-2001 or AF77-2001BLK) which is pre-installed onto a male -12AN on the top of the breather tank. The tank features two female -8AN O-ring which can be adapted to any lines and fittings for plumbing purposes. This tank features a drain valve (AF615-00S or AF615-00BLK) which is pre-installed into a female -10AN O-ring into the bottom of the tank. The exit of this valve incorporates a female 1/8"; NPT for connection of an appropriate drain tube to be attached if required. Simply turn the valve anti-clockwise to release/empty the tank and clockwise to close the valve.

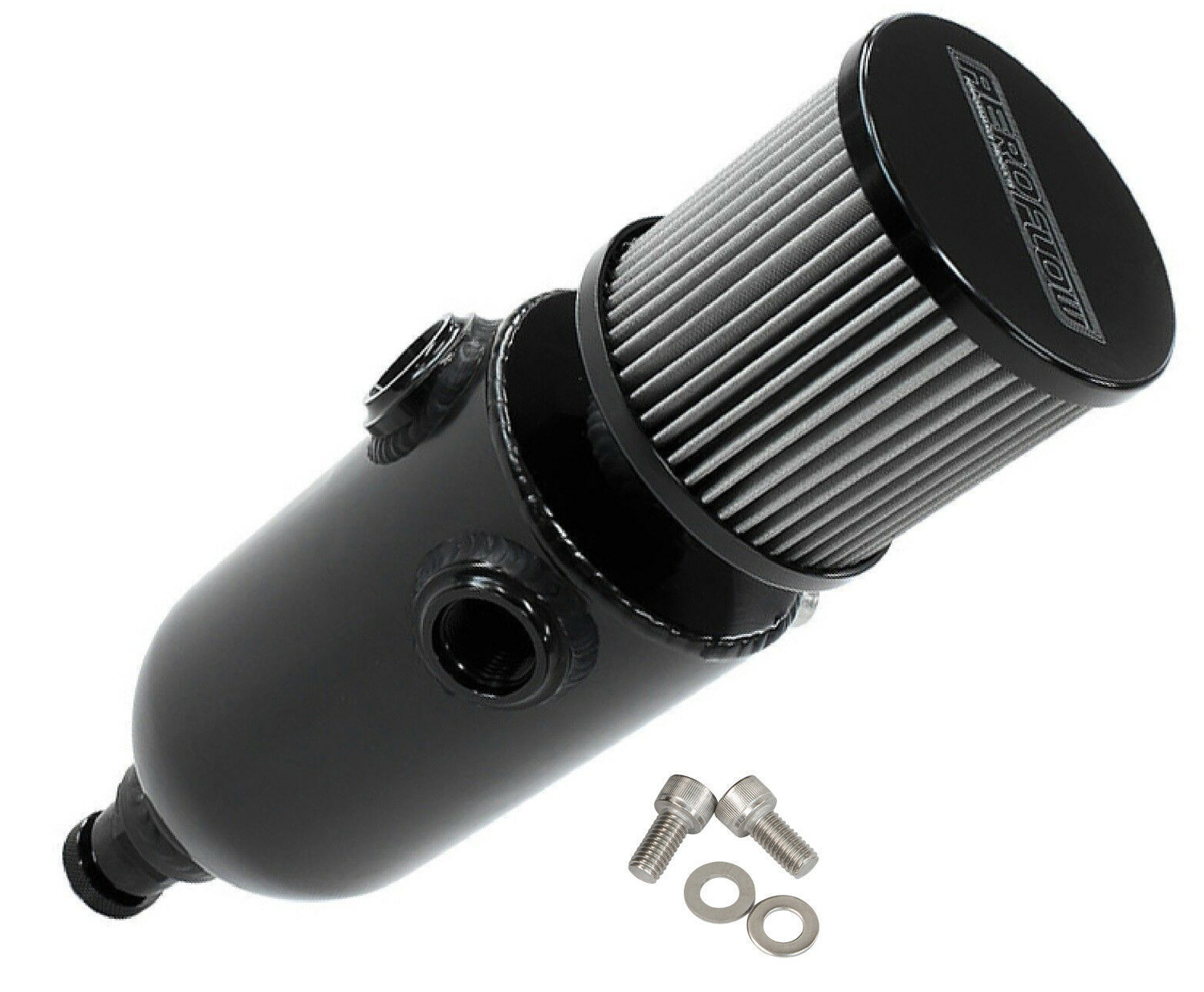

  • Aeroflow 750ml Stealth Black oil catch can
  • Part number AF77-1030BLK
  • Perfect companion for Racing Vacuum Pumps or Dry Sump Tanks
  • Full aluminium construction
  • Features 2 fully welded heavy duty M8x1.25 integral mounting bungs (with bolts), making your custom installation a breeze
  • Internally baffled design
  • Includes breather that traps oil and allows air to escape
  • Stainless steel breather element, screws on with an AN fitting for a perfect seal & to prevent loosening with vibration
  • Hand-operated billet drain tap facilitates fast & easy tank draining
  • Anodized Stealth Black finish
  • 750ml capacity
  • Two -8 ORB female ports, laser cut for a perfect seal
  • Robotically TIG welded
  • Approximately 80mm diameter x 280mm height (including breather & drain tap)
  • 12 month warranty
SKU AF77-1030BLK
Barcode # 9337206105026
Brand Aeroflow
