Originally developed for the 2010 Ford Cobra Jet Mustangs, these 6 gallon aluminum fuel cells feature the same advantages of the 15 and 20 gallon versions, but without the street-style sending unit. Plus, the compact 6 gallon size, makes it perfect for drag racing and other like applications where large fuel capacity is not an issue.

This is a truly universal aluminum fuel cell featuring an Aeromotive high performance fuel pump and pre-pump filter built right into the fuel cell. These Stealth Fuel Cells feature an innovative integral baffling system to maintain a column of fuel at the pickup point, eliminating fuel slosh issues making these cells perfect for any application from autocross, to road racing to drifting and off-road.

Simply strap the cell in, hook up your feed and return lines and your done. Now you have a complete "in-tank" fuel system without the need for expensive custom tanks or the hassle of welding sump boxes or modifying inadequate pick up tubes.

With either the A1000 or the Eliminator Fuel Pump, the Stealth Fuel Cells are truly universal, preforming perfectly in any application. By matching the right regulator to your application, this system will be the last fuel system you will ever need to buy.

ARO18666 Features:

A1000 Fuel Pump (internal) – P/N 11101
100 Micron Stainless Steel Fuel Filter
6.2 Gallon Capacity
Return Line Provision
(2) AN-08 Vents with Rollover Valves
Standard 12-Bolt Flush Mount Lid Assembly
Natural Aluminum Finish

Fuel Injected Engines:

up to 1300 HP – naturally aspirated
up to 1000 HP – forced air induction

Carbureted Engines:

up to 1500 HP – naturally aspirated
up to 1200 HP – forced air induction


12"L x 12"W x 10"H

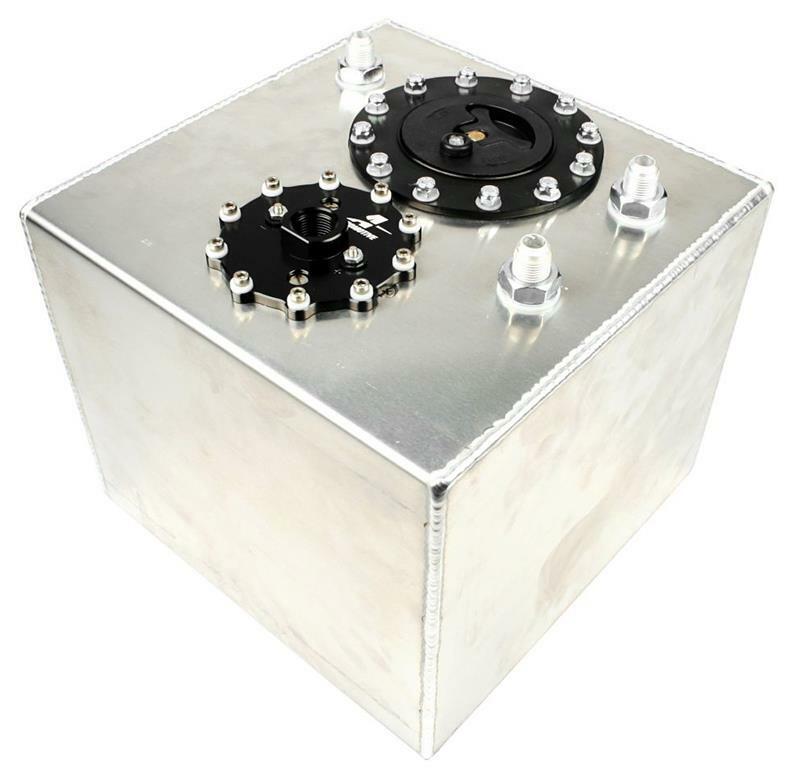

A1000 Stealth Fuel CEll6 Gal (23 Litres) -10AN Outlet With -8AN Return & Roll-Over Valve & Fuel Sender
SKU ARO18666
Brand Aeromotive
