Since releasing our Stealth Fuel Cells, the demand for the pump assembly alone has been exceptional. To meet this demand, we've developed our new Universal Stealth Pump Assemblies. These revolutionary designs incorporate the same advantages all our Stealth Fuel Systems provide by placing the fuel pump and pre-filter inside the tank. However, this new design allows for multiple mounting options in almost any fuel tank or cell.
Designed for the custom tank builder or fabricator, the universal assembly uses O-Ring clamps to positively seal the provided 3/4" tube to the both the filter pickup and the fuel pump inlet, allowing for perfect placement of the pickup and ensuring superior performance.
Now custom tanks and fuel cells can easily and affordably feature an in-tank fuel pump; increasing performance and driveability while extending the life span of the pump. Proper baffling and clearance will be required, but installation could not be simpler with this universal design.

Fuel Injected Engines:
up to 1300 HP - naturally aspirated
up to 1000 HP - forced air induction

Carbureted Engines:
up to 1500 HP - naturally aspirated
up to 1200 HP - forced air induction

Features:

100 Micron stainless steel Fuel Filter / Pickup
20" long 3/4" aluminium tube with 90 degree bend
Gaskets, mounting ring, bolts and washers for a positive seal mounting
For EFI applications use regulator P/N 13101 or P/N 13109.
For carburettor applications use regulator P/N 13204.
Fully submersible for custom, in-tank placement.
Perfect for "blow-through" carburettor engines up to 1200 HP.
Billet Speed Pump Controller (P/N 16306) recommended for EFI street applications.
Compatible with E85 & Methanol fuels

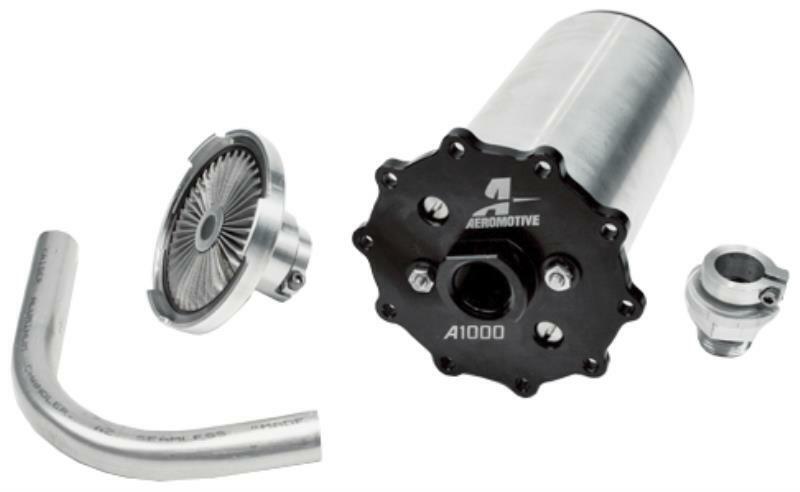

A1000 Stealth Universal Fuel Pump Assembly Top Mount
SKU ARO18668
Brand Aeromotive
