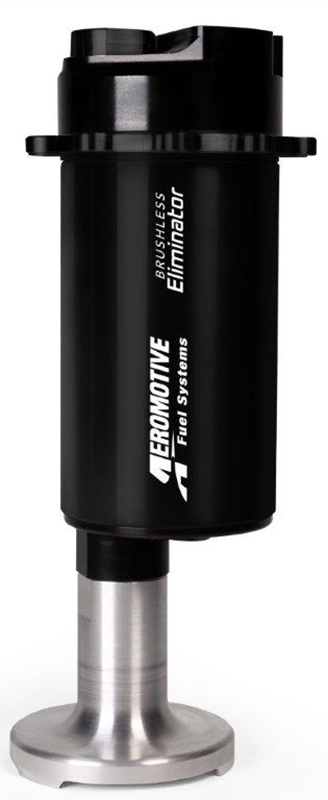

Aeromotive Eliminator Brushless Stealth Fuel Pump Suit Stealth Cells ARO18024
SKU code: ARO18024
ORB-10 outlet port.
Integral 100-m prefilter and fluted pickup.
Direct fit for all Aeromotive Stealth Fuel Cells, 6, 15 and 20-gallon.
For EFI applications use regulator P/N 13305 or P/N 13134.
For carburetted applications use regulator P/N 13202 or P/N 13212.
25% more flow at pressure than our A1000 Brushless Fuel Pump.
Fully submersible for custom, in-tank placement in 10" deep fuel tanks and fuel cells.
Perfect for 'blow-through' carburetted engines up to 1700 FWHP.
Fuel Injected Engines:
up to 1900 FWHP - naturally aspirated
up to 1400 FWHP - forced air induction
up to 2300 FWHP - naturally aspirated
up to 1700 FWHP - forced air induction
Brushless motors employ sensors to monitor rotor angle to provide faster and more reliable phase shifting, producing more torque capacity and motor efficiency. Instead of the armature rotating, in a brushless motor the magnets rotate around the armature and the motor controller manages the phase shift to keep the motor rotating under load (load is related to pressure in a fuel pump). With more torque per watt and a higher torque to weight ratio, brushless motors produce lower noise and deliver higher reliability.
With a higher level of efficiency, down to fractions of a second in design speed control, the new Aeromotive brushless fuel pumps provide precise control of fuel pump RPM as pressure rises, better maintaining pump RPM and flow, producing a flatter flow curve. Tight tolerances result in less current draw, less heat and extended life. Now there is the ability to upgrade to a premium brushless pump
