Some batteries offer enormous cranking power. Others, deep cycle reserve power. Unbeatable ODYSSEY® Extreme Series™ batteries do both. Even at very low temperatures, ODYSSEY Extreme Series batteries have the power to provide engine - cranking pulses in excess of 2250 amps for 5 seconds - double to triple that of equally sized conventional batteries. And they can handle 400 charge - discharge cycles to 80% depth of discharge.

ODYSSEY Extreme Series batteries are made with flat plates made of 99% pure lead - not lead alloy, like many conventional batteries. Pure lead plates can be made thinner, so we can fit more of them in the battery. More ODYSSEY battery plates mean more plate surface area. And that means more power - twice as much as conventional batteries.

Like many popular spiral - wound batteries, ODYSSEY Extreme Series batteries employ dry cell Absorbed Glass Mat (AGM) technology to contain acid, allowing the battery to be installed even on its side. But the densely packed flat plates in an ODYSSEY Extreme Series battery avoid the "dead space" between cylinders in a "six pack" design. The result is 15% more plate surface area - and that translates to more power!

Battery Specifications

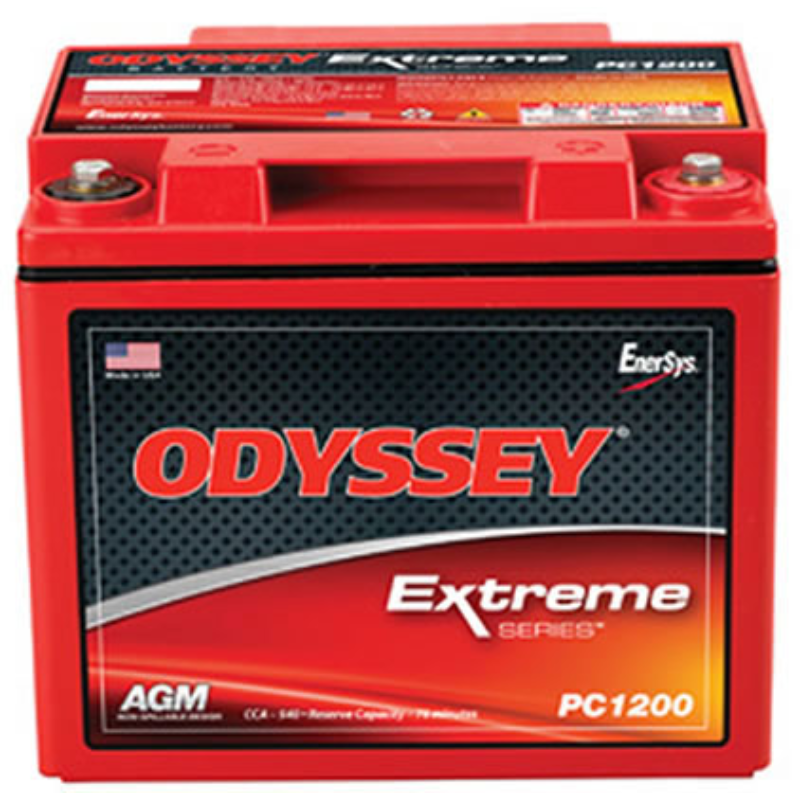

Model: PC1200MJ
Voltage: 12 Volt
Pulse (5 second) Hot Cranking Amps (PHCA): 1200
Cold Cranking Amps (CCA): 540
HCA: 860
MCA: 725
20Hr Nominal Capacity (Ah): 42
10Hr Nominal Capacity (Ah): 40
Reserve Capacity Minutes: 78
Terminal: M6 Receptacle (internal threaded brass terminals with M6 SS bolts)
Torque Spec in-lbs (Nm max): 60 (6.8)
Internal Resistance: 4.5
Short Circuit: 2600

Dimensions
Length: 201 mm
Width: 170 mm
Height (terminals included): 165 mm
Height (container): 173 mm
Weight: 18.4 kg
SKU ODPC1200
Brand Odyssey
