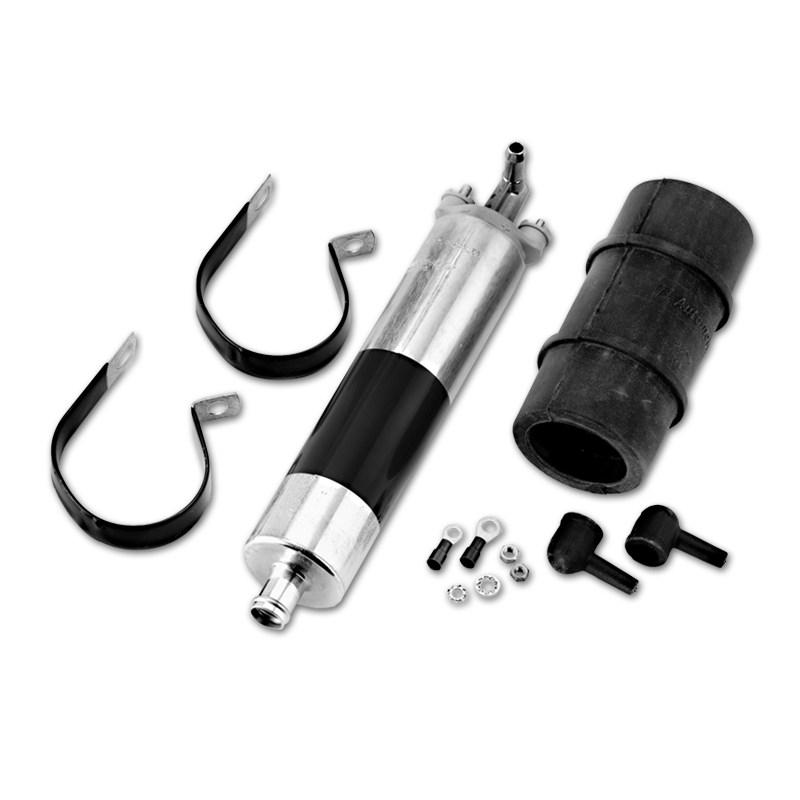

The Pierburg EFP-485 Fuel Pump (7.50012.50.0) is a high-output, OEM-quality solution designed for demanding EFI, turbocharged, and motorsport fuel systems.

Built by Pierburg, a trusted global OEM manufacturer, the EFP-485 combines high-pressure performance with an integrated lift pump, allowing it to pull fuel efficiently without requiring a separate pre-pump in most setups.

Delivering up to 360LPH flow, this pump is capable of supporting high-horsepower builds while maintaining stable fuel delivery under load. It’s fully E85 compatible, making it ideal for modern ethanol and flex-fuel applications.

With a versatile connection setup including -10AN inlet, -6AN outlet, and 5/16” barb fitting, the EFP-485 is designed to integrate cleanly into custom fuel systems without unnecessary adaptation.


Features & Benefits

OEM Pierburg quality - Engineered for high-stress, critical applications where failure is not an option.

High flow performance (360LPH) - Supports high-output engines across street, track, and motorsport builds.

Integrated lift pump design - Capable of drawing fuel without a pre-pump in many setups, simplifying your system.

E85 & flex-fuel ready - Compatible with modern fuels without degradation or performance loss.

Flexible connection options -10AN inlet, -6AN outlet, plus 5/16” barb for adaptable installation.

Strong suction capability - Up to 500mm suction height with filled lines.

Proven Bosch 044 alternative - Modern solution with strong flow and improved system flexibility.



Specifications

  • Part Number: 7.50012.50.0
  • Flow Rate: 360LPH (pressure dependent)
  • Fuel Type: Petrol, E85, Flex Fuel
  • Inlet: -10AN
  • Outlet: -6AN + 5/16” Barb
  • Pump Type: External, high-pressure with integrated lift stage
  • Max Suction Height: 500mm (with primed lines)
  • Part Number: 7.50012.50.0
  • Flow Rate: 360LPH (pressure dependent)
  • Fuel Type: Petrol, E85, Flex Fuel
  • Inlet: -10AN
  • Outlet: -6AN + 5/16” Barb
  • Pump Type: External, high-pressure with integrated lift stage
  • Max Suction Height: 500mm (with primed lines)
SKU EFP-485
Barcode # 9341554107731
Brand Pierburg
